No. 51 & 51-L Barnhart Wheel Grinder Parts List

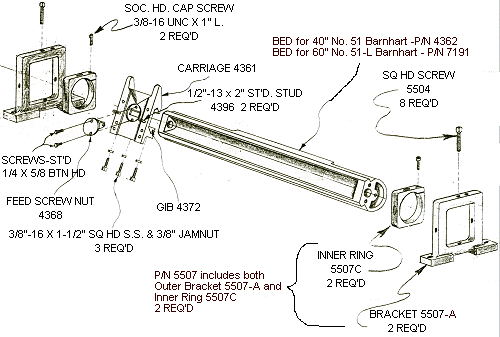

Bed Assembly
4361, 4396, 4362, 5504, 5507, 5507-A, 5507-C, 4372, 4368, 7191

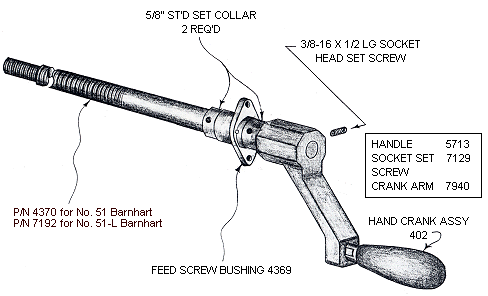

Feed Screw Assembly


5713, 7129, 7940, 402, 4369, 4370, 7192

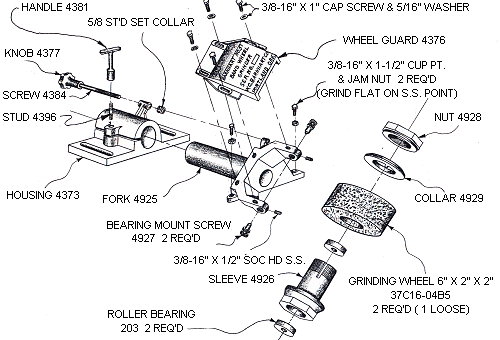

Head Assembly
4381, 4377, 4384, 4396, 4373, 4925, 4927, 4926, 203, 37C16-04B5, 4929, 4928, 4376

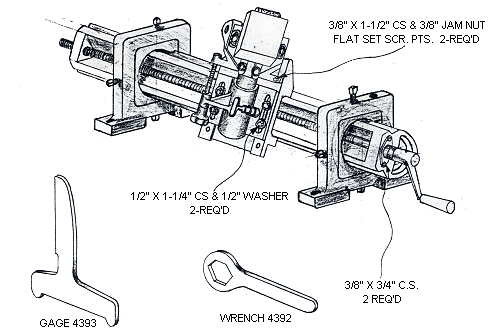

Assembly
4392, 4393
