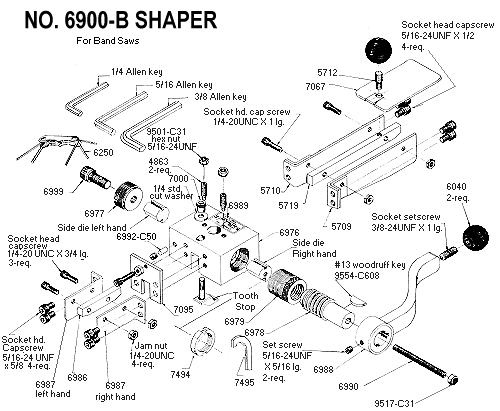

No. 6900-B SHAPER PARTS LIST

6900-B parts list.gif (30292 bytes)

Part No. Name
4863 Dog point set screw (2 req.)
5709 Hand guard, LH
5710

Hand guard, RH

5712 Offset stud
5719 Tailpiece spacer
6040 Ball handle
6250 Socket head wrench set
6976 Shaper head
6977 Side die adapter plug
6978*
6979*
Clamp screw
Clamp screw nut
These two parts assembled as P/N 6978-SET
6980-C Side dies, R & L, Carbide tipped (pair), deep tooth
6981 Tooth stop, deep tooth (3/4 & deeper) with nut 7000
6982-C Side dies, R & L, Carbide tipped (pair), shallow tooth (11/16" & shallower)
6983 Tooth stop, shallow tooth (11/16 shallower) with nut 7000
6986 Front saw guide spacer
6987-L Front saw guide, left hand
6987-R Front saw guide, right hand
6988 Operating handle complete
6989 Name plate
6990 Side die return screw
9517-C31 Nut, 5/16 16-24 UNF Socket head
6992-C50 Aluminum plug
6999 Cap screw, 1/2-20 UNF socket head
7000 Allen nut, 5/16-18 UNC hex soc.
7067 Hand rest
7095 Tooth stop adjustment bracket
7494 Spanner nut
7495 Spanner wrench
  Allen keys, 1/4", 5/16", 3/8"
