Air Swage Parts List for Gang Saws
No. 6G, 7G and 10G
Click image above for full size drawing


Nos. 6G, 7G and10G gang saw swages are available with automatic trip assembly in place of pistol grip, at no extra cost.

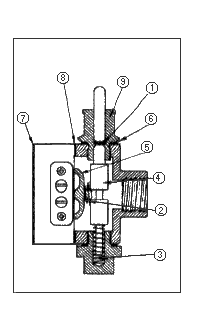

Part No. 5352-R Air Valve Repair Kit

Item Part No. Description
1 8563-C006 O-Ring, Valve Stem
2 6145 Spring, Valve Slide
3 6146 Spring, Valve Stem
4 6222 Stem, Valve
5 6231 Slide, Valve
6 6642 Gasket, Valve Package Gland
7 7354 Gasket, Rear Head
8 7355 Gasket, Valve Chest
9 7765 Packaging Gland
